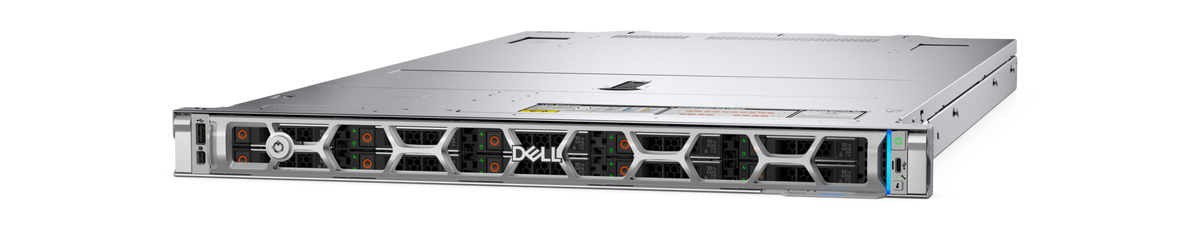

Dell PowerEdge R470 Rack Server – Intel Xeon 6 6511P, 128GB RAM, 3x480GB SSD
The Dell PowerEdge R470 is a 1U, single-socket rack server engineered for maximum energy efficiency and cost-effective performance in scale-out and cloud data center environments. This configuration pairs a 16-core Intel Xeon 6 Performance 6511P processor with 128GB of DDR5 memory and enterprise-grade PERC H965i RAID, delivering strong density and networking throughput for modern virtualized and cloud-native workloads.
Key Features
- Intel Xeon 6 Performance 6511P processor (2.3GHz, 16-Core/32-Thread, 72MB Cache, Turbo, 150W)
- 128GB DDR5 6400MT/s Dual Rank RDIMM memory (4x32GB)
- 8x 2.5" hot-plug drive bays (SAS/SATA) for flexible storage configurations
- PERC H965i RAID controller (Front) for enterprise storage management
- 3x 480GB Read Intensive SSDs for fast, reliable storage
- Broadcom 57414 Dual Port 25GbE SFP28 networking with high-temperature (85°C) rated optics
- iDRAC10 Enterprise 17G for comprehensive remote server management
- Dual, redundant (1+1) hot-plug 1100W Titanium power supplies for maximum uptime and efficiency
- ReadyRails Sliding Rails with Cable Management Arm for clean rack deployment
- 3-Year Dell ProSupport with Next Business Day Onsite Service Extension
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Dell PowerEdge R470 |
| Processor | Intel Xeon 6 Performance 6511P, 2.3GHz, 16-Core/32-Thread, 72MB Cache, 150W |
| Memory | 128GB (4x32GB), DDR5, 6400MT/s, Dual Rank RDIMM |
| Chassis | 8x 2.5" Hard Drive bays (SAS/SATA) |
| Storage | 3x 480GB SSD SATA, Read Intensive, 6Gbps, 512e, 2.5" Hot-Plug |
| RAID Controller | PERC H965i Controller, Front |
| PCIe Riser | Riser Config 6, 2x16 Full-Height Slots (Gen5), 1x16 Onboard OCP |
| Networking | Broadcom 57414 Dual Port 25GbE SFP28 Adapter, OCP 3.0 NIC + 2x SFP28 SR Optic, 85°C High Temp |
| Management | iDRAC10, Enterprise 17G |
| Power Supply | Dual, Redundant (1+1), Hot-Plug, 1100W, Titanium (100-240Vac) |
| Cooling | PowerEdge 1U High Performance Fan |
| Rails | ReadyRails Sliding Rails with Cable Management Arm |
| Bezel | PowerEdge 1U Standard Bezel |
| Power Cord | C13 to C14, PDU Style, 10 AMP, 6.5 ft (2m) |
| Warranty | 3 Years ProSupport + Next Business Day Onsite Service Extension |
Compatibility
Configured with ReadyRails Sliding Rails and Cable Management Arm for standard 19" rack cabinets. Riser Config 6 provides Gen5 PCIe expansion alongside onboard OCP 3.0 networking.
Main Use Cases
- Cloud-native and scale-out application hosting
- Virtualization and containerized workloads
- Edge and distributed compute deployments
- Cost-optimized, energy-efficient data center scaling
Why Choose This Product
The 16-core/32-thread Xeon 6 Performance 6511P processor delivers strong single-socket compute density, while 128GB of DDR5 memory supports demanding virtualization and multi-tenant workloads. The dual redundant Titanium power supplies minimize energy costs at scale, and 25GbE networking with PERC H965i RAID provides both throughput and storage resilience for enterprise deployments. The 3-year ProSupport with Next Business Day Onsite Service offers predictable, enterprise-grade support coverage.
