NVIDIAFlagship
H200 NVL
Large LLM inference, fine-tuning and HPC
- GPU memory
- 141 GB HBM3e
- Power
- Up to 450 W*
- Form factor
- Double-wide
- Per R770
- Up to 2
Max per server282 GB
Get pricing with this GPU
17th Generation PowerEdge · Intel Xeon 6

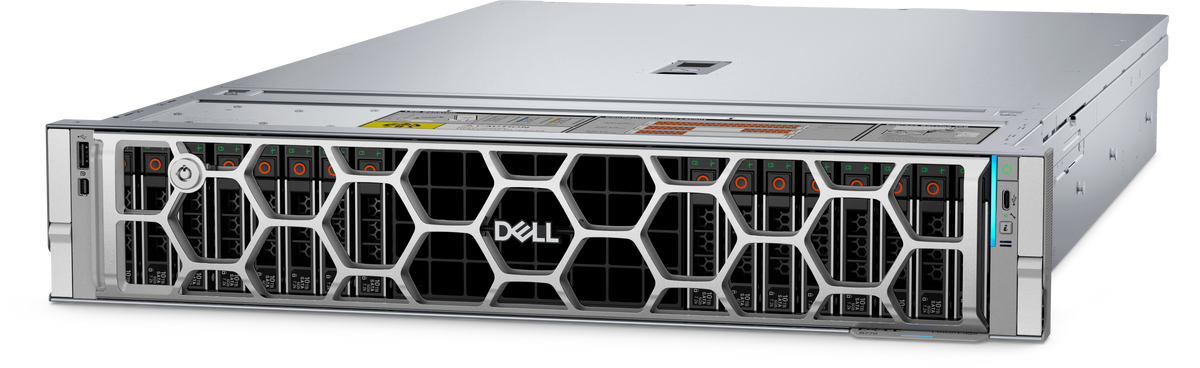

Dell PowerEdge R770The AI-ready 2U server for virtualization, inference and dense NVMe storage.
Up to two Intel Xeon 6 processors, 8 TB of DDR5, NVIDIA data-center GPUs and up to 40 Gen5 NVMe drives in 2U. Configured, quoted and delivered by Forte Tech across Egypt and the GCC.
- Genuine Dell hardware
- Egypt & GCC delivery
- Local pre-sales engineers
- Tender & PO ready
Intel® Xeon® 6Up to 2 processors
AI-readyUp to 2 × NVIDIA H200 NVL
144cores
per CPU with Xeon 6 E-cores (up to 86 P-cores)
8TB
DDR5 across 32 DIMMs at up to 6400 MT/s
40× E3.S
Gen5 NVMe drives in the front, up to 2.45 PB
1.69×
better performance per watt vs. previous generation*
Built for
One platform for your core data-center workloads
Configure the R770 for dense virtualization, AI inference, transactional databases or all-flash software-defined storage.
Virtualization & VDI
High core counts and 8 TB of DDR5 consolidate more VMs per host on VMware, Hyper-V or Proxmox.
AI inference
Up to two NVIDIA H200 NVL, H100 NVL or L40S GPUs for LLMs, RAG and computer vision. See GPU options →
Databases & analytics
Xeon 6 P-cores plus Gen5 NVMe cut latency for SQL Server, Oracle, SAP and real-time analytics.
Software-defined storage
Up to 40 front E3.S NVMe drives for vSAN, Ceph or backup targets in just 2U of rack space.
AI & GPU acceleration
AI-ready: run inference, RAG and fine-tuning on‑premises
Keep sensitive data in your own data center and run AI close to it. The R770 supports Dell-validated NVIDIA GPUs, from the energy-efficient L4 to the H200 NVL with 141 GB of HBM3e memory.
- NVIDIA data-center GPUs: up to 2 double-wide cards (H200 NVL, H100 NVL, RTX PRO 6000, L40S) or up to 6 single-wide L4 cards.
- Intel AMX built in: Xeon 6 P-cores accelerate smaller models and pre-/post-processing directly on the CPU.
- Room for models and data: up to 8 TB of DDR5 for embeddings and vector databases, and up to 2.45 PB of Gen5 NVMe for datasets and checkpoints.
- Power and cooling for sustained load: up to 3200 W Titanium PSUs, high-performance fans, or Direct Liquid Cooling.
Private LLMs & RAG
Arabic and English assistants trained on your own documents, with the data kept inside your data center.
Computer vision
CCTV and video analytics, ID and document OCR, and visual quality inspection.
Fraud & risk analytics
Real-time scoring and anomaly detection for banking, payments and telecom.
VDI & graphics
GPU-accelerated virtual desktops, CAD, rendering and simulation.
GPU options for the R770
Dell-validated NVIDIA accelerators. Choose one and we'll quote a complete, compatible build.
NVIDIALLM workhorse
H100 NVL
LLM inference, RAG and model fine-tuning
- GPU memory
- 94 GB HBM3
- Power
- 350 W
- Form factor
- Double-wide
- Per R770
- Up to 2
Max per server188 GB
Get pricing with this GPU
NVIDIANew generation
RTX PRO 6000 Blackwell
Generative AI, multimodal models, rendering and simulation
- GPU memory
- 96 GB GDDR7
- Power
- Up to 450 W*
- Form factor
- Double-wide
- Per R770
- Up to 2
Max per server192 GB
Get pricing with this GPU
NVIDIABest value
L40S
Generative AI inference, graphics and VDI
- GPU memory
- 48 GB GDDR6
- Power
- 350 W
- Form factor
- Double-wide
- Per R770
- Up to 2
Max per server96 GB
Get pricing with this GPU
NVIDIASingle-wide
RTX PRO 4500
Mid-size inference, AI-assisted design and visualization
- GPU memory
- 32 GB
- Power
- 165 W
- Form factor
- Single-wide
- Per R770
- Up to 4
Max per server128 GB
Get pricing with this GPU
NVIDIALow power
L4
Video analytics, computer vision and edge inference
- GPU memory
- 24 GB GDDR6
- Power
- 72 W
- Form factor
- Single-wide
- Per R770
- Up to 6
Max per server144 GB
Get pricing with this GPU
NVIDIAVDI
A16
GPU-accelerated virtual desktops for many concurrent users
- GPU memory
- 64 GB GDDR6
- Power
- 250 W
- Form factor
- Double-wide
- Per R770
- Up to 2
Max per server128 GB
Get pricing with this GPU
Not sure which GPU?
Tell us your model, data and number of users. Our engineers will recommend the right GPU and a complete, compatible build.
Ask our engineersSizing rule of thumb: a model needs about 2 GB of GPU memory per billion parameters at FP16, or about 1 GB at FP8/INT8, plus headroom for context and concurrent users. For example, a 70-billion-parameter model at FP8 fits on 2 × H100 NVL.
Validated builds: H200 NVL and RTX PRO 6000 run power-capped at 450 W in the R770 and need high-performance fans and current iDRAC firmware. Our engineers check every GPU configuration against Dell's requirements before quoting.
What's inside
17th-generation PowerEdge engineering
The R770 pairs the newest Intel Xeon 6 processors with flexible storage, cooling and security, so one chassis fits many roles.
Compute
Choose P-cores or E-cores
Xeon 6 P-core CPUs (up to 86 cores) for per-thread performance, or E-core CPUs (up to 144 cores) for maximum density and efficiency.
Memory
8 TB DDR5-6400
32 registered ECC DIMM slots give memory-hungry databases and hypervisors room to grow.
Storage
E3.S, NVMe or SATA
From 24 × 2.5" SATA to 40 × E3.S Gen5 NVMe in front, plus 4 more E3.S bays in the rear. PERC H965i / H975i RAID options.
Expansion
PCIe Gen5 & OCP 3.0
Gen5 x16 slots for GPUs and high-speed NICs, plus two OCP 3.0 NIC slots at the front or rear.
Cooling
Air or direct liquid cooling
High-performance hot-swap fans, or DLC for high-TDP CPUs in dense racks. Power from 800 W up to 3200 W Titanium.
Security & management
Silicon root of trust + iDRAC
Signed firmware, Secure Boot and TPM 2.0, managed remotely through iDRAC, Redfish API and Quick Sync 2.
Popular configurations
Start from a proven build
Reference configurations our engineers adjust to your workload, licensing and budget.
Virtualization Node
Balanced compute and memory for VMware, Hyper-V or Proxmox clusters.
- 2 × Intel Xeon 6 P-core CPUs
- 512 GB DDR5-6400 RDIMM
- 8 × 2.5" NVMe SSD
- PERC H965i RAID · BOSS-N1 boot
- 2 × 25 GbE OCP 3.0
- Dual redundant PSUs
AI Inference Node
GPU-accelerated inference, RAG and computer vision in your own data center.
- 2 × Intel Xeon 6 P-core CPUs with Intel AMX
- 1 TB DDR5-6400 RDIMM
- 2 × NVIDIA H100 NVL or L40S GPUs
- 8 × E3.S Gen5 NVMe
- 2 × 100 GbE networking
- High-output Titanium PSUs
All-Flash Storage Node
Dense Gen5 NVMe capacity for vSAN, Ceph, backup and data lakes.
- 2 × Intel Xeon 6 CPUs
- 512 GB DDR5-6400 RDIMM
- Up to 40 × E3.S Gen5 NVMe
- BOSS-N1 mirrored boot
- 2 × 100 GbE OCP 3.0
- Dual redundant PSUs
Need something different? Build your own in the R770 configurator or send us your BOM.
Technical specifications
Dell PowerEdge R770 at a glance
- Form factor
- 2U rack server
- Processors
- Up to two Intel® Xeon® 6 processors — up to 86 P-cores or up to 144 E-cores per processor
- Memory
- 32 DDR5 RDIMM slots, up to 8 TB, speeds up to 6400 MT/s (registered ECC only)
- Front storage
- Up to 40 × E3.S Gen5 NVMe (2.45 PB max) · 32 or 16 × E3.S options · up to 8 × 2.5" SATA/NVMe · up to 24 × 2.5" SATA
- Rear storage
- Up to 4 × E3.S Gen5 NVMe
- RAID & boot
- PERC H965i, H975i, H365i · BOSS-N1 DC-MHS boot-optimized storage (front or rear)
- GPU
- Up to 6 × 75 W FHHL or up to 2 × 450 W double-wide full-length GPUs
- Expansion
- PCIe Gen5 x8/x16 slots on front and rear risers · 2 × OCP NIC 3.0 slots (front or rear)
- Power
- 800 W Platinum up to 3200 W Titanium PSUs, including 277 VAC and HVDC options
- Cooling
- Air cooling with up to 6 hot-swap high-performance fans, or Direct Liquid Cooling (DLC)
- Management
- iDRAC, iDRAC Direct, Redfish RESTful API, RACADM CLI, iDRAC Service Module, Quick Sync 2
- Security
- Silicon Root of Trust, cryptographically signed firmware, Secure Boot, data-at-rest encryption, TPM 2.0 (FIPS, CC-TCG), chassis intrusion detection
- Operating systems
- Windows Server (P-core), Red Hat Enterprise Linux, SUSE Linux Enterprise, Ubuntu Server LTS, VMware ESXi
- Dimensions & weight
- H 86.8 mm × W 482 mm × D up to 814.5 mm · up to 28.53 kg
* Performance-per-watt figure and specifications per Dell Technologies. Available options vary by configuration and region.
Download Dell spec sheet (PDF)
Why Forte-Tech
Your local partner for Dell infrastructure
We help banks, telecom operators, government entities and enterprises specify, source and deploy Dell PowerEdge servers.
Genuine Dell hardware
New, factory-configured PowerEdge servers with Dell manufacturer warranty.
Pre-sales engineering
Engineers who size CPU, memory, storage and power for your actual workload.
Delivery across Egypt & GCC
Logistics to your data center or branch, with optional rack installation.
Tender & PO ready
Formal quotations, compliance documents and invoicing for procurement teams.
How ordering works
Tell us your workloadPick a build, use the configurator, or send your BOM.
Get a validated quoteOur engineers validate compatibility and send a detailed quotation with pricing and lead time.
Approve & orderPurchase order, bank transfer or tender documentation.
Delivery & deploymentDelivered to your site in Egypt or the GCC, with optional installation.
FAQ
Questions about the R770
What is the lead time for the R770?
Lead time depends on the configuration and Dell factory availability. We confirm the delivery date with your quote.
Can the R770 run large language models on-premises?
Yes. With two NVIDIA H200 NVL GPUs (282 GB of GPU memory in total) or two H100 NVL GPUs (188 GB), the R770 can serve large language models, RAG pipelines and fine-tuning jobs inside your own data center. We size the GPUs, memory and storage to your model and number of users.
Which GPU should I choose for AI?
Choose the H200 NVL or H100 NVL for large LLMs and fine-tuning; the RTX PRO 6000 or L40S for generative AI, multimodal and graphics workloads; the L4 for low-power video analytics and edge inference; and the A16 for VDI. Tell us your model and expected number of users, and we'll recommend the right card.
Should I choose Xeon 6 P-core or E-core processors?
P-core CPUs (up to 86 cores) suit databases, virtualization and latency-sensitive applications. E-core CPUs (up to 144 cores) suit scale-out, cloud-native and web workloads where core density and efficiency matter most. Note that Windows Server is supported on P-core configurations.
Does the R770 need liquid cooling?
No. Most deployments use air cooling with high-performance fans. Direct Liquid Cooling is an option for high-TDP processors in dense racks and requires rack manifolds and a coolant distribution unit.
What warranty is included?
Every R770 is supplied with Dell's manufacturer warranty. Extended Dell ProSupport or ProSupport Plus coverage can be added, and the exact warranty terms are stated on your quotation.
Do you deliver outside Egypt?
Yes. We supply customers across Egypt and the GCC, including Saudi Arabia, the UAE, Qatar, Kuwait, Oman and Bahrain.
Can you help with installation and setup?
Yes. Our engineers can handle rack installation, iDRAC and RAID configuration, and operating-system deployment. Mention it in your request and we'll include it in the quotation.
Ready to size your R770?
Send your requirements or build your own configuration. We'll take it from there.
